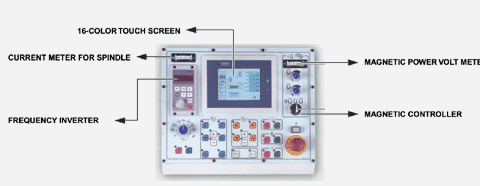

CONTROL PANEL:
|
|
|
|
|
|||
|
ACUMEN FEATURES:
1.C5 class ballscrew and
servo motor for vertical transmission.Digital
control by Equiptop designed program with MitsubishiPLC. Selection menu for Equiptop
surface and plunge grinding,mechanical coordinates,
working coordinates, grinding control points, input and output points...etc. 2.Auto wheel dressing and compensation system on table.Table positioning on left side for wheel dressing. 3.Digital readout feedback for cross positioning
setting. Three-section setting value for cross movement to fit rough,finish, and micro
grinding. 4.Spindle seat with water cooling system to ensure
stability ofaccuracy. 5.Three axes fully automatic surface grinding with NC
control. Servo system for vertical transmission. 16-color touch screen,
spindle current meter, and magnetic power volt meter. 6.Minimum setting value for vertical downfeed is 0.0001mm. 7.Minimum display value for cross movement is 0.001mm. 8.Optional wheelhead auto
wheel dressing and compensation system or diamond forming dressing and
compensation system. 9.Humanized man-machine touch screen. |
SPECIFICATIONS:
MODEL |
ACUMEN 500 |
|
Table Size |
254x508mm(10x20") |
|
Max.grinding
length |
Longitudinal |
520mm(20
1/2") |
Max.grinding width |
Crosswise |
280mm(11") |
Max. distance
from table surface to spindle centerline |
500mm |
|
Stadard magnetic chuck size |
250x500mm(10x20") |
|
Longitudinal
movement of table |
Max. travel, hydraulic |
580mm(22 3/4") |
Max. travel, manual |
620mm(24 3/8") |
|
Max. travel,infinitely
variable |
60HZ,0.2-36m/min,50HZ,0.2-32m/min |
|
Cross
transverse travel |
Auto
transverse increment |
1-13mm(0.04"-0.5") |
Auto constant
feeding speed |
60-320mm/min |
|
Max. auto
transverse travel |
270mm(10 5/8") |
|
Max. manual
transverse travel |
300mm(11 3/4") |
|
Handwheel per revolution |
5mm(0.2") |
|
Handwheel per graduation |
0.02mm(0.001") |
|
Wheelhead vertical infeed |
Automatic in
feed |
Rough Grinding 0.001-0.05mm Finishing Grinding 0.0001-0.009 Mm |
Manual pulse
generator (per graduation) |
0.001mmx1. 0.001mmx10. 0.001mmx100 |
|
Min Setting
value |
0.001mm/min |
|
Rapid travel,
Approx |
150mm/min |
|
Grinding spidle drive |
Speed |
60HZ,3450 R.P.M.;50HZ,2850 R.P.M. |
Power rating |
3.0HP |
|
Standard
grinding wheel |
Diameter |
203mm(8") |
Width |
19mm(3/4"),MAX.25mm(1") |
|
Bore |
31.75mm(1 1/4") |
|
Hydraulic
motor |
Power rating |
2.0HP |
Crossfeed motor |
Power rating |
500W/DCV |
Elevating
motor |
Power rating |
750W/DCV |
Floor space |
Total space
required |
2400x1450x1750mm(94 1/2"x57"x68 1/2") |
Weights |
Net weight,
Approx. |
1810KGS(3982LBS) |
Gross weight,
Approx. |
2160KGS(4752LBS) |
|
Rated power,
Approx |
|
5.5HP |
Packing
dimensions |
L x W x H |
2480x2060x2100mm(98"x81"x83") |
NOTE:
The manufacturer reserves the right to modify the design, specifications,
mechanisms, etc., to improve the performances of the machine without notice.
All the specifications shown above are just for reference.
